Silver Resolution Reference SilverMini Interconnect

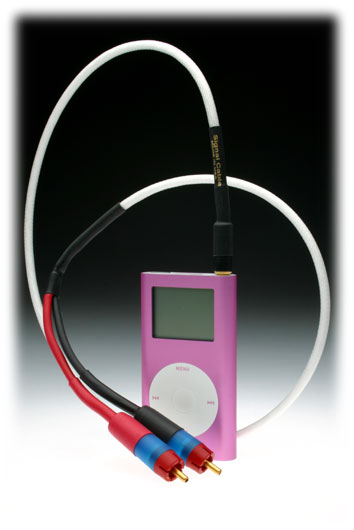

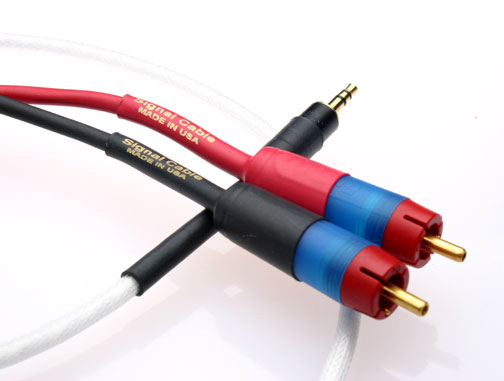

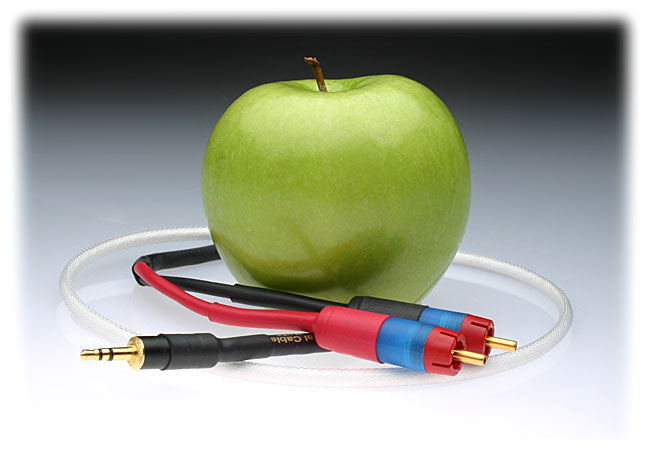

Photos

Description





Based on our Silver Resolution interconnect design, this High Purity multi-strand Silver Alloy Mini - Stereo RCA interconnect offers unmatched resolution, dynamics and musicality. A perfect solution to integrate your iPod and other digital/portable players into your beloved home audio system.

The ETI Bullet Plug shown above is no longer available (New Photo coming soon)

Optional Neutrik ProFi

Specifications   Prices and Options

THE CABLE DESIGN

  • 2x2 conductors, 5N Silver Alloy strands (each channel)

  • Insulation for each conductor - thin wall Extruded Teflon

  • Effective gauge size per channel - 24awg

  • Shield - braided 5N Silver Plated OFC

  • Outer Jacket - Teflon Tape

  • Geometry - Internal Twisted

ELECTRICAL CHARACTERISTICS

  • Nom. Capacitance - 19.6 pF/ft

  • Nom. Conductor DC Resistance - 22.3 Ω/1000 ft

  • Nom. Inductance - 0.12 ÁH/ft

Silver Resolution Mini

Silver Resolution Mini - Neutrik ProFi

Per Standard Length (2 feet) -

  • Per Set  Price - $55

  • Each additional foot - $15.00

Terminations -
