Silver Resolution Reference Phono/Tonearm Interconnects

Photos

Description

Fine 5N multi-strand silver alloy interconnect that combines all the strength of silver, but without the associated harshness often found with silver cables offered in the market.

Same high quality conductors as our standard Silver Resolution analog interconnects but with smaller gauge size (24 AWG effective) optimized for Phono applications, this is one of the finest sounding phono interconnect by any standard!

The optional ETI Bullet Plugs are no longer available

Optional Neutrik ProFi

Specifications   Prices and Options

THE CABLE DESIGN

  • 2 conductors, 5N Silver/Copper Alloy strands (each channel)font>

  • Insulation for each conductor - thin wall Teflon tube

  • Effective gauge size per channel - 24awg

  • Shield - braided 5N Silver Plated OFC

  • Outer Jacket - Teflon Tape

  • Geometry - Internal Twisted, Cross Linked

ELECTRICAL CHARACTERISTICS

  • Nom. Capacitance - 18.9 pF/ft

  • Nom. Conductor DC Resistance - 20.3 Ω/1000 ft

  • Nom. Inductance - 0.12 ÁH/ft

Silver Ref Phono RCA - Set
Silver Ref Tonearm - DIN - RCA
Select DIN

Silver Phono 2ft Set (RCA to RCA + Ground)

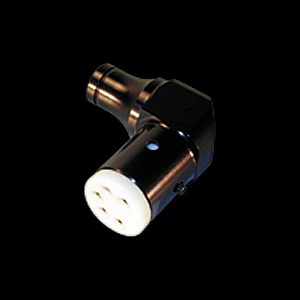

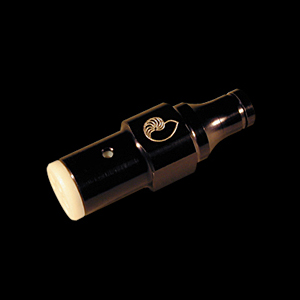

Silver Tonearm 2ft Set (Furutech Straight or Right-Angle DIN to RCA + Ground)
